產品介紹

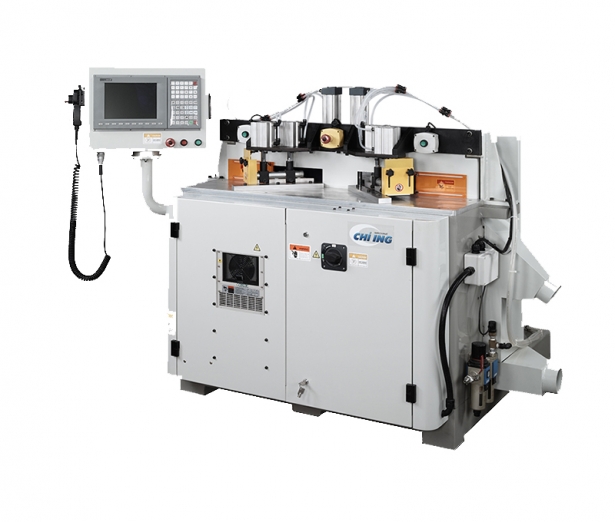

K8-MDW
CNC Miter Door(mortising,Mortising and Tenoning)
Production information
| CNC MITER, TENON AND MORTISER |
| K8-MDW |
| X, Y and Z axis CNC controlled |
| Hands free from pinch point with hand cycle start |
| 6KW miter and tenon spindle |
| 3.3KW mortise spindle |
| X axis rack and pinion |
| Y axis rotary screw and unt |
| Z axis rotary screw and unt |
| Spindles on common toolplate |
| Two working zones |
| Two cylinder clamping ＆ 2 cylinder fixed position |
| Square rail bearings |
| Lubrication－Automatic |
| Multi axis controller |
| Unlimited program storage |
| Material width：160mm |
| Material thickness ：75mm |
| N.W.：86kg G.W.：1000KG |
| Packing size：205／160／150cm |
