E SERIES

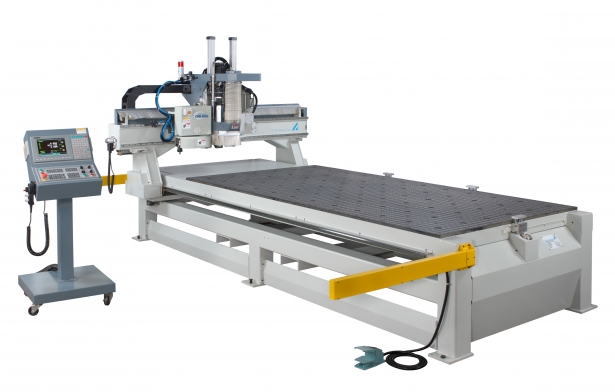

E 48
Production information
| E-48 |
| Table size: 1240 × 2450 MM |
| Bridge height clearance : 200MM |
| X-axis Field stroke : 2,480 MM |
| Y-axis Field stroke : 1,290 MM |
| Z-axis Field stroke : 250 MM |
| AC servo system : AC SERVO × 3 |
| Ball screw size : X-axis : 32MM ; Y-axis : 25MM ; Z-axis : 25 MM / Ball screw |
| Max. Speed : 40M/Min |
| CNC controller : TAIWAN SYNTECPC-based CNC controller |
| Spindle : ISO 30 8KW/Max.24000rpm |
| ATC : 8 units carousel tool bank |
| Tool length calibration : Automatic |
| Lubrication : Included |
| Tabletop reference pins : 3 units |
| Tool Holders & Accessories : ISO 30 tool holders & ER32 collet : 8 sets |
