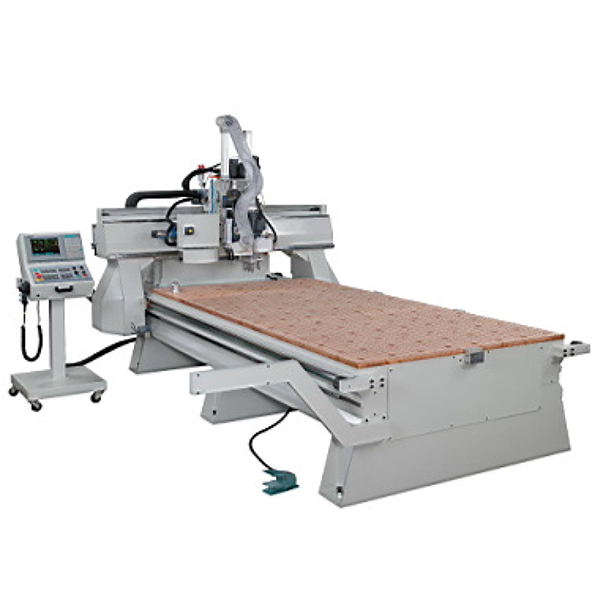

S-48
Production information
| Table size: 1240 × 2450 MM |
| Bridge height clearance : 250MM |
| X-axis Field stroke : 2,600 MM |
| Y-axis Field stroke : 1,530 MM |
| Z-axis Field stroke : 285 MM |
| AC servo system : AC SERVO × 4 |
| Ball screw size : X-axis : Helical Racks; Y-axis : 32MM Ball screw; Z-axis : 32 MM Ball screw |
| Max. Speed : 80M/Min |
| CNC controller : TAIWAN SYNTECPC-based CNC controller |
| Spindle : ISO 30 8KW/Max.24000rpm |
| ATC : 8 units carousel tool bank |
| Vertical Drills Spindle : 5×5 on 32mm |
| Tool length calibration : Automatic |
| Lubrication : Included |
| Tabletop reference pins : 3 units |
| Tool Holders & Accessories : ISO 30 tool holders & ER40 collet : 8 sets |
